Custom Spring Manufacturing From Drawing Review to Production
A practical page for OEM engineers and buyers who need custom spring manufacturing support from drawings, samples or application requirements.
Drawing-Based Custom Spring Manufacturing
Custom projects are reviewed around the part function, material, dimensions, spring load or torque, assembly space, quantity and inspection needs.
| Input | PDF, DWG, DXF, STEP, sample photos, sketches or application notes. |
|---|---|
| Engineering review | Material selection, manufacturability, spring function, inspection points and production route. |
| Published wire range | 0.1-4.0 mm, based on supplier website company overview. |

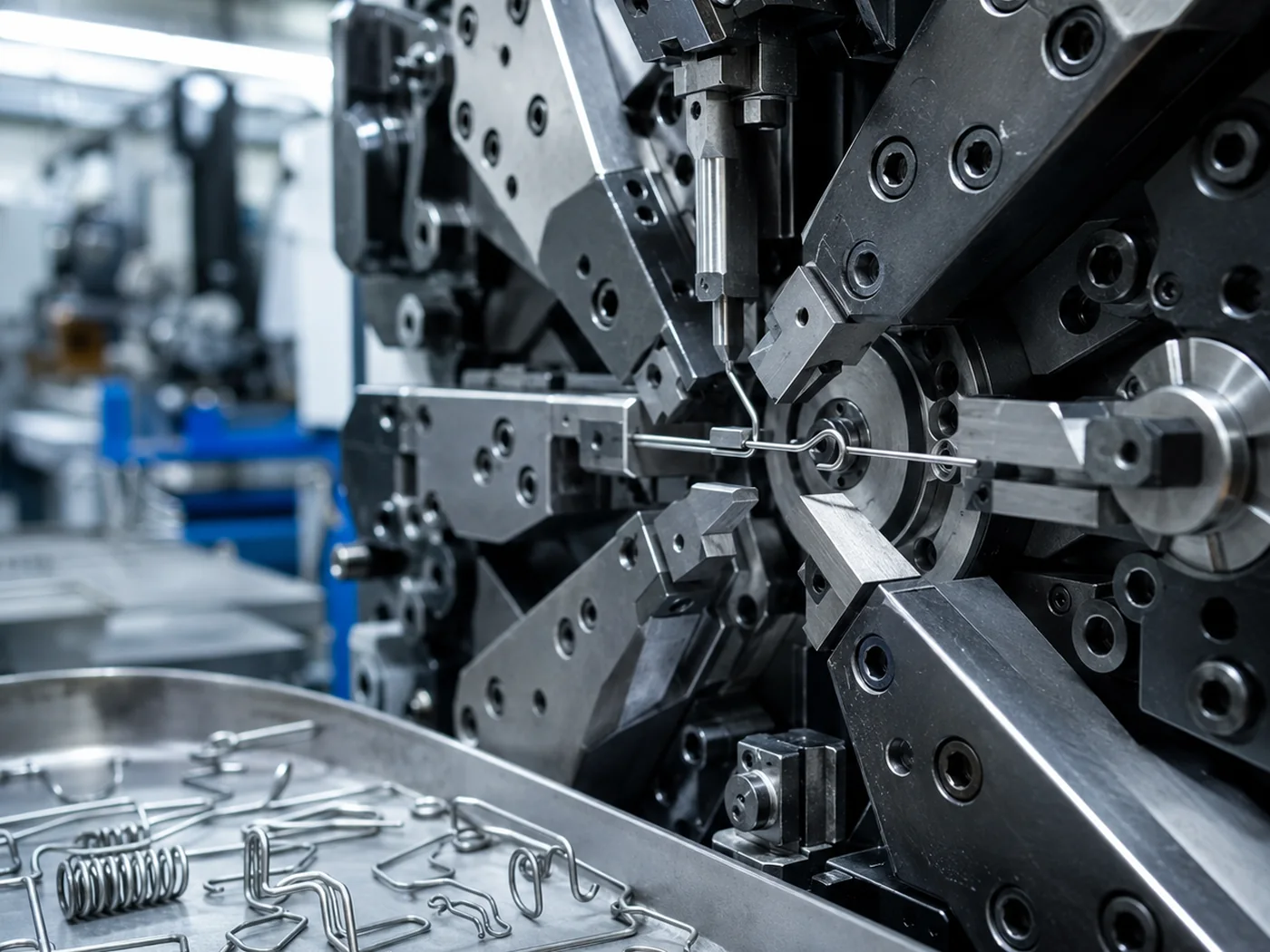

| Manufacturing route | CNC coiling, forming, stamping support, heat treatment, sorting, packing and inspection planning. |
| Tolerance and lead time | Confirmed after drawing, material, quantity and inspection review; no fixed public tolerance or delivery table is published for all custom designs. |
| Output | Quote review, sample plan, inspection needs and production discussion. |
Product families supported
- Compression Springs
- Extension Springs
- Torsion Springs
- Wire Forms
- Special Shaped Springs
- Battery Contact Springs
- Retaining Rings and Clips
- Flat and Small Springs
Custom Manufacturing Workflow
Supplier-published basis includes 1999 start year, 6000 square meter workshop, 100+ employees, 200+ production machines, 20+ inspection machines, and ISO 9001:2015 / ISO 14001:2015 system references.
RFQ Review
Collect drawing, material, quantity and application details.
DFM Notes
Review forming risk, spring function and critical dimensions.
Sample Plan
Plan sample production and inspection checkpoints.
Production Plan
Confirm process route, packing and documentation needs.
Batch Review
Check drawing revision, inspection and batch consistency needs.
Supplier-Published Capability Facts
Source basis: supplier public site, http://www.firstspring.cn/gywm/
Pages Connected to Custom Spring Manufacturing
Send drawings for custom spring review.
Include material, quantity, application, load or torque requirements and any inspection report needs.
Frequently Asked Questions
What should I send for a custom spring manufacturing review?
Send drawings or sample photos, material, wire diameter or thickness, quantity, application notes and load, torque or contact requirements if available.
Can you help when the drawing is incomplete?
A review can start from photos and key dimensions, but final production needs confirmed dimensions, material and functional requirements.
Do you review manufacturability before samples?
Yes. DFM review can cover forming risk, springback, end features, material selection and inspection checkpoints.
