Wire Forms

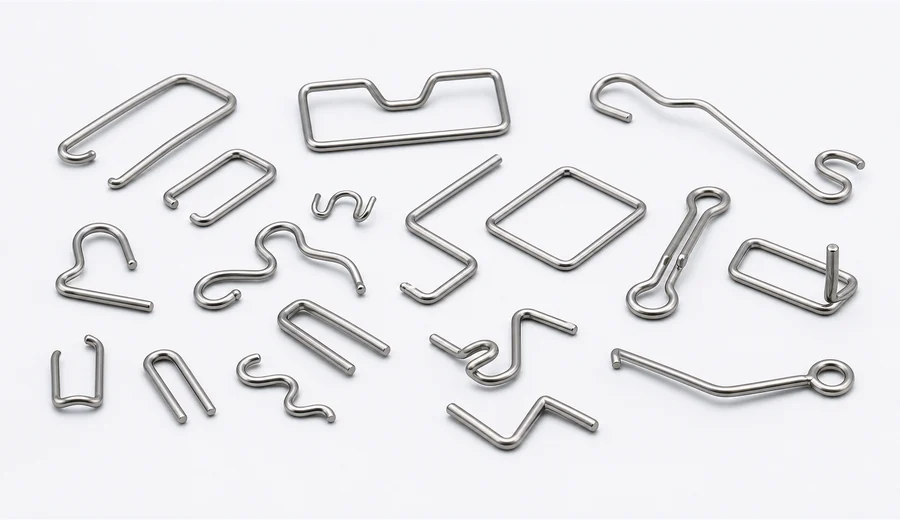

Custom Wire Forms and Formed Wire Components
Wire forms convert wire into clips, hooks, brackets, contacts or special shapes that fit a defined assembly space and retention function. Built for OEM buyers who need drawing review, material selection, inspection planning and a clear RFQ path.
Product and Engineering Review
Wire forms convert wire into clips, hooks, brackets, contacts or special shapes that fit a defined assembly space and retention function.
| Part type | Wire clips, hooks, brackets, retaining forms, contact forms and custom bent wire components. |
|---|---|
| Quote basis | Wire diameter, bend geometry, material, finish, tolerance needs, quantity and assembly function. |
| Custom dimensions | Bend radii, leg lengths, angles and formed features are confirmed from drawing or sample. |
| Materials | Carbon steel, stainless steel, music wire, phosphor bronze, brass and other materials for review. |
| Finish review | Finish requirements can be reviewed for corrosion, conductivity or appearance needs. |
| Testing | Dimensional inspection, fit checks and functional review can be planned. |
| Production route | CNC forming, secondary forming, heat treatment where applicable, sorting and inspection planning. |
| Files | PDF, DWG, DXF, STEP, sample photos or a dimension sketch can start the RFQ review. |
| Published wire range | Supplier website company overview lists production wire diameter range as 0.1-4.0 mm; drawing-specific feasibility is still reviewed by spring type, material and geometry. |
| Tolerance basis | Tolerance is confirmed by drawing, critical dimensions, material and inspection requirements; no fixed public tolerance table is used for all custom spring designs. |
| Lead time basis | Quotation, sample timing and production delivery are confirmed after drawing, material, quantity and inspection requirements are reviewed. |
RFQ details that speed up review
- Drawing or sample photos with critical dimensions marked.
- Material, finish, quantity target and application environment.
- Load, torque, contact pressure or functional requirement if available.
- Inspection report, packing or batch documentation needs.
Manufacturing Review
- Review bend sequence, bend radius and springback risk before sample forming.
- Check contact surfaces, retention features and assembly clearance from the drawing.
- Plan inspection fixtures or dimensional checkpoints for repeatable formed geometry.
Typical Applications
- Wire clips, retainers, hooks and support forms.
- Consumer electronics, appliance, hardware and lock assemblies.
- Conductive contacts and custom retaining features.
Quality Checks
- Bend angle, leg length, wire diameter and functional fit can be checked.
- Critical formed features can be documented in inspection notes.
- Packing can be reviewed to protect formed geometry during shipment.
Supplier-Published Manufacturing Basis
These figures are used as supplier-published capability references for RFQ screening. Final manufacturability, tolerance and delivery timing still depend on the drawing and order requirements.
Source basis: supplier public site, http://www.firstspring.cn/gywm/
Custom Spring Manufacturing Process
Each project is reviewed from the drawing, sample or application requirement before sampling and production planning.
Drawing Review
Confirm dimensions, function, material and missing RFQ details.
DFM Review
Check forming, coiling, springback, stress and assembly risks.
Sample Planning
Prepare sample route and inspection points for engineering review.
Production Setup
Plan coiling, forming, heat treatment, sorting and packing needs.
Inspection
Review dimensional, load, torque or functional checks by project.
Related Pages for Wire Forms Buyers
Send custom wire forms drawings for review.
Share your drawing, sample photos, material, quantity and application notes so the project can be checked against manufacturing and inspection requirements.
Frequently Asked Questions
What information do you need to quote custom wire forms?
A drawing, sample photo or sketch is the best starting point. Please include material, wire diameter or thickness, critical dimensions, quantity, application and any load, torque, contact or inspection requirements.
Can you manufacture from a drawing or sample?
Yes. The RFQ can start from PDF, DWG, DXF, STEP files, sample photos or a dimension sketch. Missing details should be confirmed before sampling.
Which materials are available?
Common review options include carbon steel, stainless steel, music wire, phosphor bronze and brass, depending on the spring type and application requirements.
Can you provide load, torque or dimensional inspection?
Dimensional checks, load testing, torque checks and inspection reporting can be planned when the drawing or project requires them.
Do you support samples before production?
Sample review can be planned before larger production, especially when the part is custom, compact or function-critical.
What should be confirmed before mass production?
Confirm final drawing revision, material, finish, quantity, inspection standard, packing method and any application-specific risks before batch production.
