Flat and Small Springs

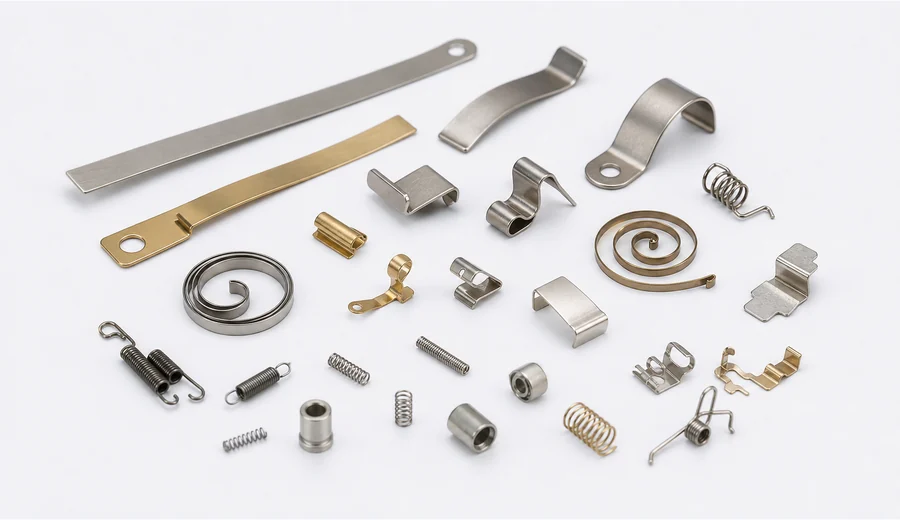

Flat Springs and Small Precision Springs for Compact Assemblies
Flat and small precision springs are reviewed where compact space, formed geometry, contact function or repeatable spring force is important. Built for OEM buyers who need drawing review, material selection, inspection planning and a clear RFQ path.
Product and Engineering Review
Flat and small precision springs are reviewed where compact space, formed geometry, contact function or repeatable spring force is important.
| Spring type | Flat springs, leaf springs, miniature springs, small compression springs and custom compact spring parts. |
|---|---|
| Quote basis | Material thickness or wire diameter, shape, load or contact function, critical dimensions, quantity and application. |
| Custom dimensions | Compact geometry is confirmed from drawing, enclosure model, mating part or sample. |
| Materials | Stainless steel, carbon steel, phosphor bronze, brass, music wire and other project-specific materials for review. |
| Finish review | Surface finish can be reviewed for contact, corrosion or appearance needs. |
| Testing | Dimensional checks, contact/load checks and sample comparison can be planned. |
| Production route | Forming, stamping support, coiling where applicable, heat treatment, sorting and inspection planning. |
| Files | PDF, DWG, DXF, STEP, sample photos or a dimension sketch can start the RFQ review. |
| Published wire range | Supplier website company overview lists production wire diameter range as 0.1-4.0 mm; drawing-specific feasibility is still reviewed by spring type, material and geometry. |
| Tolerance basis | Tolerance is confirmed by drawing, critical dimensions, material and inspection requirements; no fixed public tolerance table is used for all custom spring designs. |
| Lead time basis | Quotation, sample timing and production delivery are confirmed after drawing, material, quantity and inspection requirements are reviewed. |
RFQ details that speed up review
- Drawing or sample photos with critical dimensions marked.
- Material, finish, quantity target and application environment.
- Load, torque, contact pressure or functional requirement if available.
- Inspection report, packing or batch documentation needs.
Manufacturing Review
- Review compact assembly space and critical contact or load points before quoting.
- Check material thickness, forming direction and springback risk for flat spring features.
- Plan inspection magnification or fixture checks when small geometry is critical.
Typical Applications
- Electronics, smart devices, keyboard parts and small mechanisms.
- Locks, hardware, fixtures and compact appliance assemblies.
- Battery contacts, retaining features and custom miniature spring functions.
Quality Checks
- Critical dimensions, flatness, free height and contact shape can be checked.
- Load or contact force can be reviewed when required by the application.
- Sample and drawing comparison can support early engineering validation.
Supplier-Published Manufacturing Basis
These figures are used as supplier-published capability references for RFQ screening. Final manufacturability, tolerance and delivery timing still depend on the drawing and order requirements.
Source basis: supplier public site, http://www.firstspring.cn/gywm/
Custom Spring Manufacturing Process
Each project is reviewed from the drawing, sample or application requirement before sampling and production planning.
Drawing Review
Confirm dimensions, function, material and missing RFQ details.
DFM Review
Check forming, coiling, springback, stress and assembly risks.
Sample Planning
Prepare sample route and inspection points for engineering review.
Production Setup
Plan coiling, forming, heat treatment, sorting and packing needs.
Inspection
Review dimensional, load, torque or functional checks by project.
Related Pages for Flat and Small Springs Buyers
Send small precision springs drawings for review.
Share your drawing, sample photos, material, quantity and application notes so the project can be checked against manufacturing and inspection requirements.
Frequently Asked Questions
What information do you need to quote small precision springs?
A drawing, sample photo or sketch is the best starting point. Please include material, wire diameter or thickness, critical dimensions, quantity, application and any load, torque, contact or inspection requirements.
Can you manufacture from a drawing or sample?
Yes. The RFQ can start from PDF, DWG, DXF, STEP files, sample photos or a dimension sketch. Missing details should be confirmed before sampling.
Which materials are available?
Common review options include carbon steel, stainless steel, music wire, phosphor bronze and brass, depending on the spring type and application requirements.
Can you provide load, torque or dimensional inspection?
Dimensional checks, load testing, torque checks and inspection reporting can be planned when the drawing or project requires them.
Do you support samples before production?
Sample review can be planned before larger production, especially when the part is custom, compact or function-critical.
What should be confirmed before mass production?
Confirm final drawing revision, material, finish, quantity, inspection standard, packing method and any application-specific risks before batch production.
