Retaining Rings and Clips

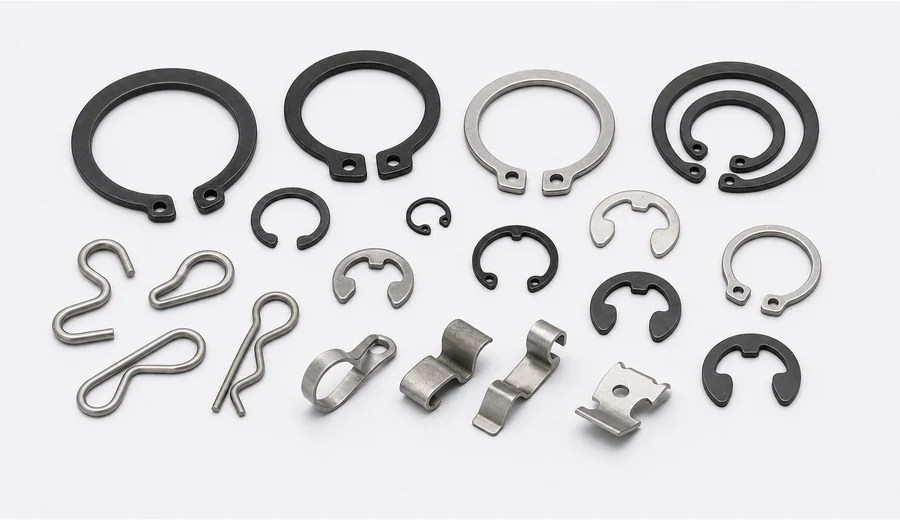

Custom Retaining Rings, Clips and Spring Fastening Parts
Retaining rings and clips are formed to hold, locate or lock components in a mechanical assembly and are reviewed from drawing or sample. Built for OEM buyers who need drawing review, material selection, inspection planning and a clear RFQ path.
Product and Engineering Review
Retaining rings and clips are formed to hold, locate or lock components in a mechanical assembly and are reviewed from drawing or sample.
| Part type | Retaining rings, spring clips, wire clips, circlip-style forms and custom fastening spring parts. |
|---|---|
| Quote basis | Groove size, retaining function, material, wire or strip dimensions, finish, quantity and application. |
| Custom dimensions | Inside diameter, outside diameter, gap, formed tabs and critical features are confirmed by drawing. |
| Materials | Carbon steel, stainless steel, music wire, phosphor bronze, brass and other project-specific materials for review. |
| Finish review | Finish requirements can be checked for corrosion, sliding contact or appearance needs. |
| Testing | Dimensional inspection and functional fit checks can be planned. |
| Production route | Wire forming, stamping support, heat treatment where applicable, sorting and inspection planning. |
| Files | PDF, DWG, DXF, STEP, sample photos or a dimension sketch can start the RFQ review. |
| Published wire range | Supplier website company overview lists production wire diameter range as 0.1-4.0 mm; drawing-specific feasibility is still reviewed by spring type, material and geometry. |
| Tolerance basis | Tolerance is confirmed by drawing, critical dimensions, material and inspection requirements; no fixed public tolerance table is used for all custom spring designs. |
| Lead time basis | Quotation, sample timing and production delivery are confirmed after drawing, material, quantity and inspection requirements are reviewed. |
RFQ details that speed up review
- Drawing or sample photos with critical dimensions marked.
- Material, finish, quantity target and application environment.
- Load, torque, contact pressure or functional requirement if available.
- Inspection report, packing or batch documentation needs.
Manufacturing Review
- Review groove fit, retention direction and assembly method before production planning.
- Check sharp edge, burr and surface finish requirements when parts contact moving components.
- Plan dimensional checkpoints for ring gap, diameter and formed tab geometry.
Typical Applications
- Shaft, groove and housing retention.
- Locks, hardware, appliance and industrial device assemblies.
- Custom clips for locating, holding or electrical contact support.
Quality Checks
- Ring diameter, gap, wire/strip size and formed features can be inspected.
- Functional fit review can be planned when samples or mating parts are provided.
- Packing requirements can be reviewed to avoid deformation.
Supplier-Published Manufacturing Basis
These figures are used as supplier-published capability references for RFQ screening. Final manufacturability, tolerance and delivery timing still depend on the drawing and order requirements.
Source basis: supplier public site, http://www.firstspring.cn/gywm/
Custom Spring Manufacturing Process
Each project is reviewed from the drawing, sample or application requirement before sampling and production planning.
Drawing Review
Confirm dimensions, function, material and missing RFQ details.
DFM Review
Check forming, coiling, springback, stress and assembly risks.
Sample Planning
Prepare sample route and inspection points for engineering review.
Production Setup
Plan coiling, forming, heat treatment, sorting and packing needs.
Inspection
Review dimensional, load, torque or functional checks by project.
Related Pages for Retaining Rings and Clips Buyers
Send retaining rings and clips drawings for review.
Share your drawing, sample photos, material, quantity and application notes so the project can be checked against manufacturing and inspection requirements.
Frequently Asked Questions
What information do you need to quote retaining rings and clips?
A drawing, sample photo or sketch is the best starting point. Please include material, wire diameter or thickness, critical dimensions, quantity, application and any load, torque, contact or inspection requirements.
Can you manufacture from a drawing or sample?
Yes. The RFQ can start from PDF, DWG, DXF, STEP files, sample photos or a dimension sketch. Missing details should be confirmed before sampling.
Which materials are available?
Common review options include carbon steel, stainless steel, music wire, phosphor bronze and brass, depending on the spring type and application requirements.
Can you provide load, torque or dimensional inspection?
Dimensional checks, load testing, torque checks and inspection reporting can be planned when the drawing or project requires them.
Do you support samples before production?
Sample review can be planned before larger production, especially when the part is custom, compact or function-critical.
What should be confirmed before mass production?
Confirm final drawing revision, material, finish, quantity, inspection standard, packing method and any application-specific risks before batch production.
